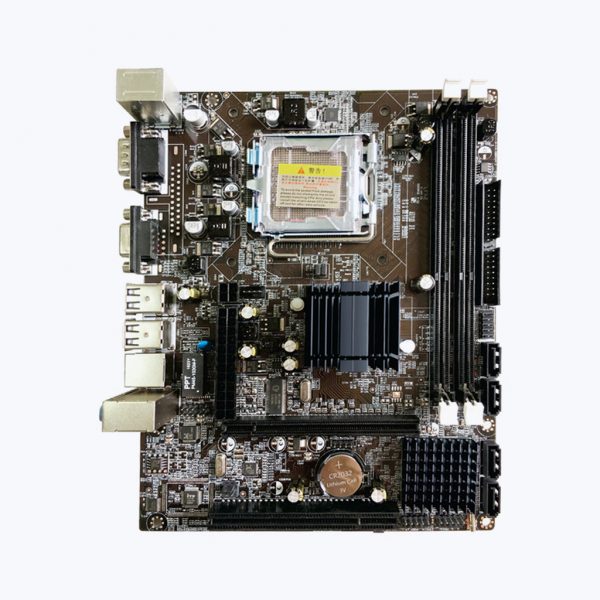

ZEBRONICS MOTHER BOARD LGA 775 SOCKET (ZEB-G41-D3S)
$ 28.34
- SPECIFICATION Supported CPU Intel Core 2 Quad/ Core 2 Duo/ Pentium Series/ Celeron Series Processor North Bridge – Intel G41 Chipset South Bridge – Intel ICH7 Chipset Memory supported 2 DDR3 dual-channel RAM slots, Memory up to 8GB ( Double Bank RAM) Supports DDR3 800/1066MHz memory, 2 x DIMM Slots BIOS AMI BIOS I/O Interface 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 xVGA Port, 1 xCOM port, 4 x USB 2.0 ports, RJ45 LAN port, 1 x 3-in-1 audio jacks Onboard interface 1 x Front panel connector,1 x Front audio connector, 2 x USB 2.0 Connector, 4 x SATA Ports, 1 x 1 IDE slot,1 x 4 pin CPU fan connector, 1 x 24-pin ATX power connector, 1 x SYS Fan Connector, 1 x 4-pin ATX 12V power connector, 1 x clear CMOS header Integrated LAN Supports RTL8105E 10/100 Mbps Ethernet LAN Expansion slot 1 PCI Express x16 slot, 1 PCI Slot Form factor Mirco-ATX Country of Origin China Package contents G41-D3 Motherboard I/O Backboard SATA Cable IDE Cable Driver disc User manual
