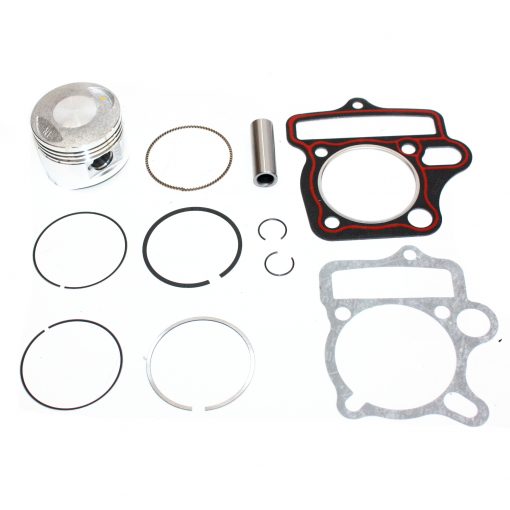

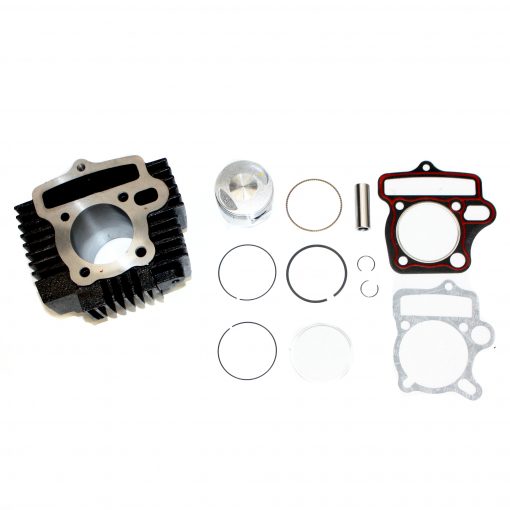

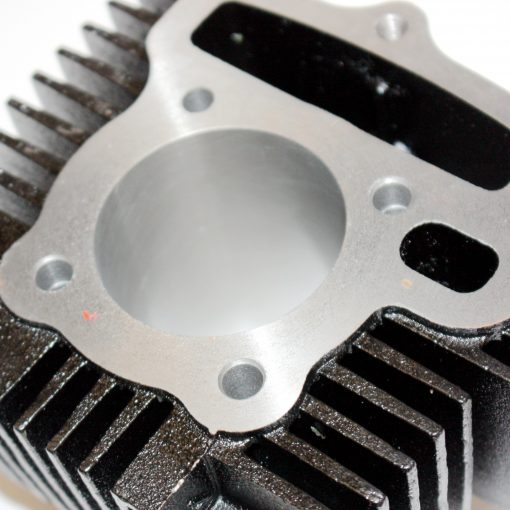

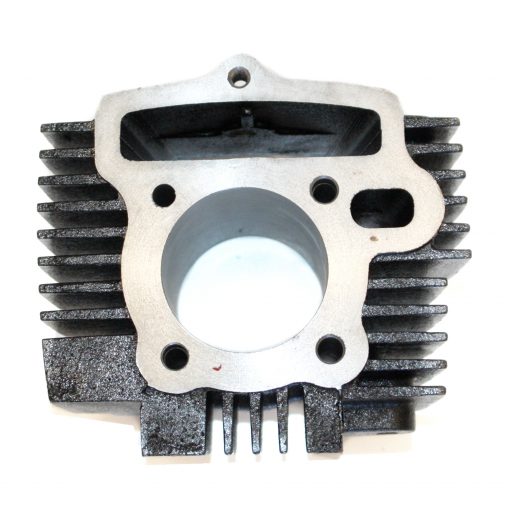

Brand New 52.4mm 14mm Pin LIFAN 125cc Engine Rebuild Kit PIT PRO Dirt Bike DIAMETER OF BORE approx 52.36mm DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS approx 50.46mm / 50.21mm / 47.64mm / 50.98mm HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE) approx 78.31mm HEIGHT OF THE SLEEVE approx 20mm DIAMETER OF PISTON (Bottom) approx 52.38mm HEIGHT OF PISTON (Bottom to Top Middle) approx 40.10mm LENGTH OF PISTON PIN approx 41.26mm DIAMETER OF PISTON PIN approx 13.96mm Tag : PIT PRO, PIT Bike, Trail Bike, Dirt Bike, Motorcross Bike, MX Bike
