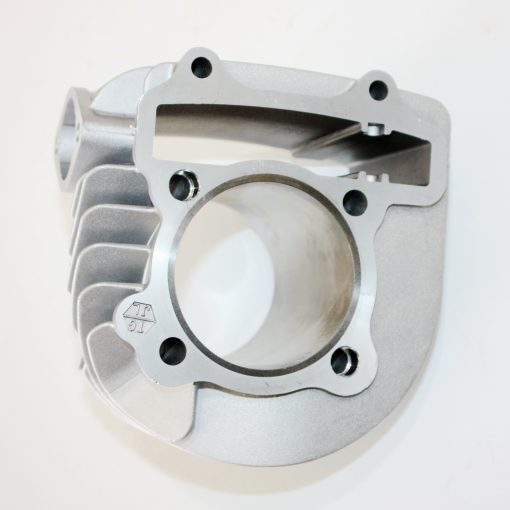

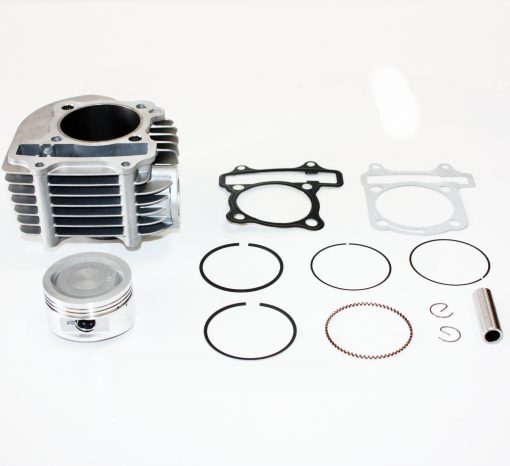

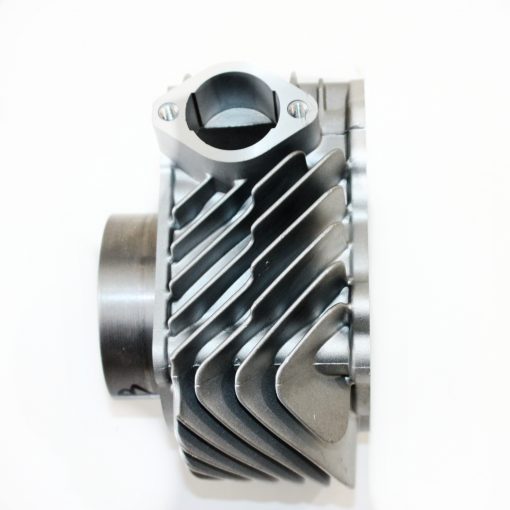

Brand New 62.5mm Engine Rebuild Kit Barrel Piston Gasket GY6 200cc SCOOTER QUAD BIKE BUGGY DIAMETER OF BORE approx 62.45mm DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS approx 53.42mm / 59.98mm / 53.14mm / 60.67mm HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE) approx 69.55mm HEIGHT OF THE SLEEVE approx 20.99mm DIAMETER OF PISTON approx 62.45mm HEIGHT OF PISTON approx 39.44mm LENGTH OF PISTON PIN approx 46.55mm DIAMETER OF PISTON PIN approx 14.95mm Tag : PIT Bike, Dirt Bike, Quad Bike, ATV, Dune Buggy, UTV, Gokart, 4 Wheeler. Motorcross Bike, Mx Bike
