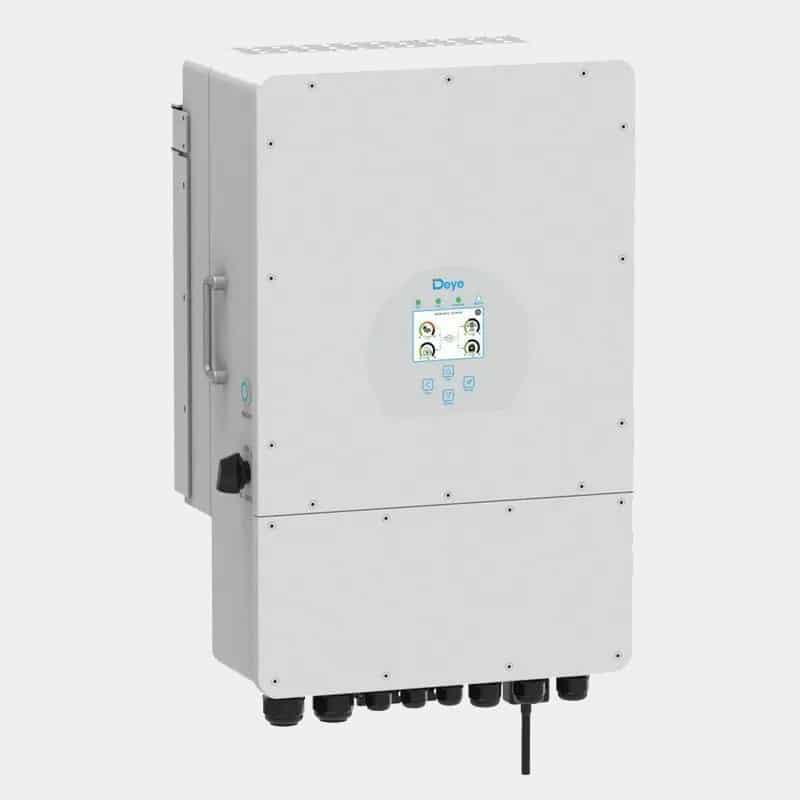

Solar Inverter DEYE 12KW HYBRID THREE PHASE Features of the solar inverter DEYE 12000KW HYBRID: 48V low voltage battery, transformer isolation design 6 time periods for battery charging/discharging Max. charging/discharging current of 240A Max.16pcs parallel DC couple and AC couple to retrofit existing solar system Support storing energy from diesel generator Supports three phase unbalanced output Unique Smart Load application and Grid peak shaving function Model SUN-5K-SG04LP3-EU SUN-6K-SG04LP3-EU SUN-8K-SG04LP3-EU SUN-10K-SG04LP3-EU SUN-12K-SG04LP3-EU Battery Input Data Battery Type Lead-acid or Lithium-ion Battery Voltage Range (V) 40~60V Max. Charging Current (A) 120A 150A 190A 210A 240A Max. Discharging Current (A) 120A 150A 190A 210A 240A Charging Curve 3 Stages / Equalization External Temperature Sensor Yes Charging Strategy for Li-Ion Battery Self-adaption to BMS PV String Input Data Max. DC Input Power (W) 6500W 7800W 10400W 13000W 15600W Rated PV Input Voltage (V) 550V(160V～800V） Start-up Voltage (V) 160V MPPT Range (V) 200V-650V Full Load DC Voltage Range (V) 350V-650V PV Input Current (A) 13A 13A 26A 13A Max. PV ISC (A) 17A 17A 34A 17A Number of MPPT / Strings per MPPT 2/1 1 2/2 1 AC Output Data Rated AC Output and UPS Power (W) 5000W 6000W 8000W 10000W 12000W Max. AC Output Power (W) 5500W 6600W 8800W 11000W 13200W Peak Power (off grid) 2 times of rated power, 10 S AC Output Rated Current (A) 7.6 9.1 12.1 15.2 18.2 Max. AC Current (A) 11.4 13.6 18.2 22.7 27.3 Max. Continuous AC Passthrough (A) 45A Output Frequency and Voltage 50/60Hz;3L/N/PE 220/380Vac，230/400Vac Grid Type Three Phase Current Harmonic Distortion THD<3% (Linear load<1.5%) Efficiency of DEYE 12000KW HYBRID Max. Efficiency 97.60% Euro Efficiency 97.00% MPPT Efficiency 99.90% Protection PV Input Lightning Protection Integrated Anti-islanding Protection Integrated PV String Input Reverse Polarity Protection Integrated Insulation Resistor Detection Integrated Residual Current Monitoring Unit Integrated Output Over Current Protection Integrated Output Shorted Protection Integrated Output Over Voltage Protection Integrated Surge protection DC Type II / AC Type II Certifications and Standards Grid Regulation CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 General Data Operating Temperature Range (℃) -45~60℃, >45℃ Derating Cooling Smart cooling Noise (dB) <45 dB Communication with BMS RS485; CAN Weight (kg) 33.6 Size (mm) 422W×699.3H×279D Protection Degree IP65 Installation Style Wall-mounted Warranty 5 years More about DEYE More Solar Inverters
