212cc 4 Valve Racing 66mm Big Bore Rebuild Barrel Piston Daytona ZS 190cc Engine

$61.94 $117.07

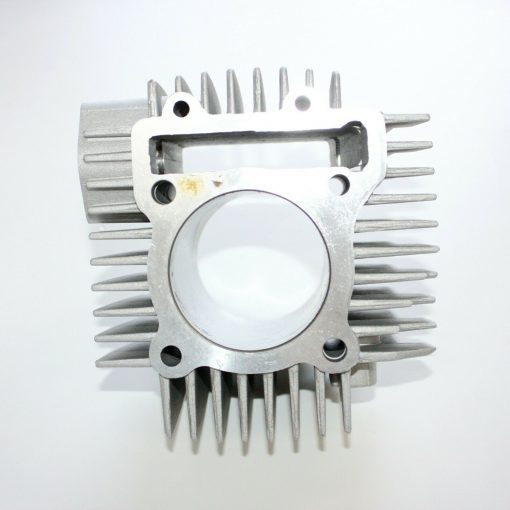

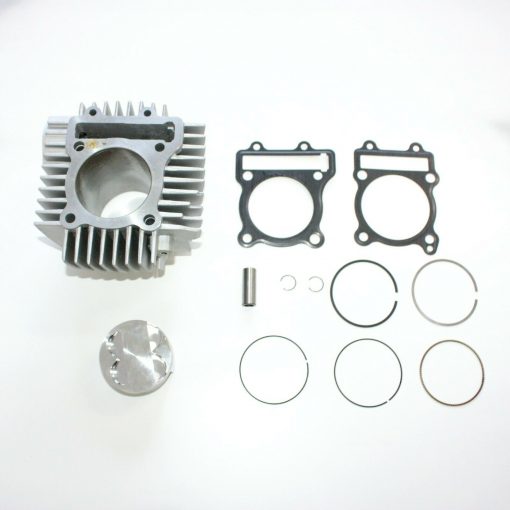

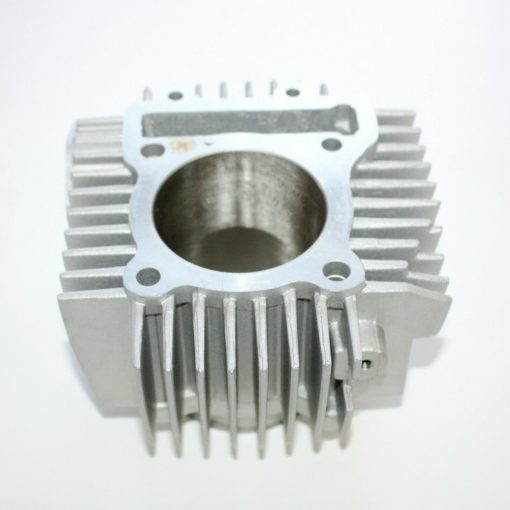

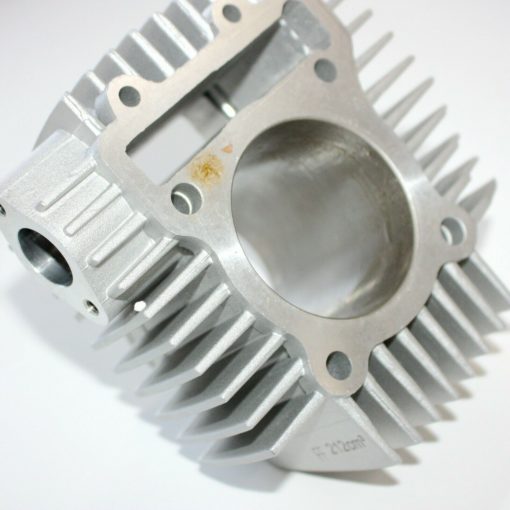

SKU:A00G Brand New : 212cc 4 Valve Racing 66mm Big Bore Rebuild Barrel Piston Daytona ZS 190cc Engine SPECIFICATION OF BARREL DIAMETER OF BORE around 66.59mm DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS around 71.23mm/68.70mm/ 66.88mm/68.61mm HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE) around 80.06mm HEIGHT OF THE SLEEVE around 22.79mm SPECIFICATION of piston DIAMETER OF PISTON around 66.02mm HEIGHT OF PISTON around 38.17mm LENGTH OF PISTON PIN around 36.43mm DIAMETER OF PISTON PIN around 13.99mm Tag : PIT PRO, PIT Bike, Trail Bike, Dirt Bike, Motorcross Bike, MX Bike
