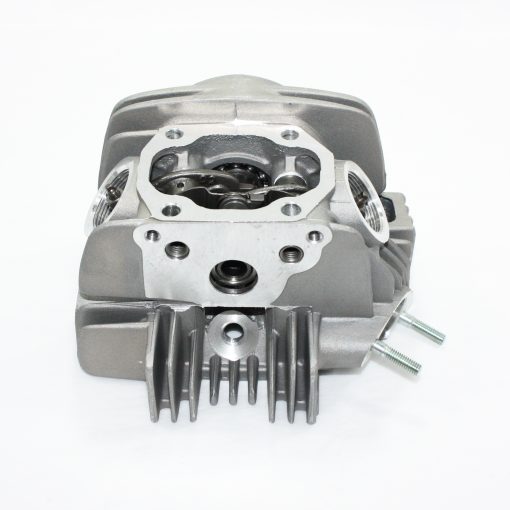

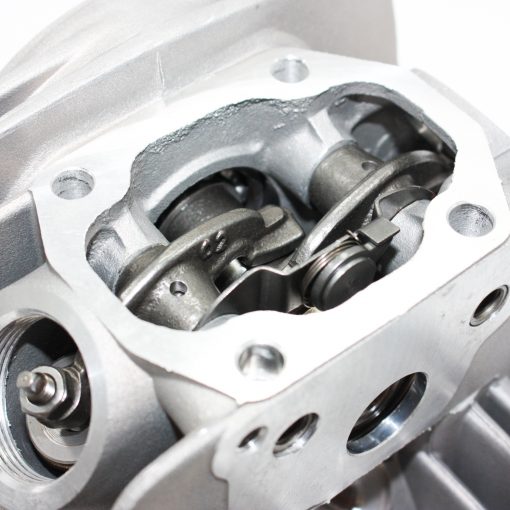

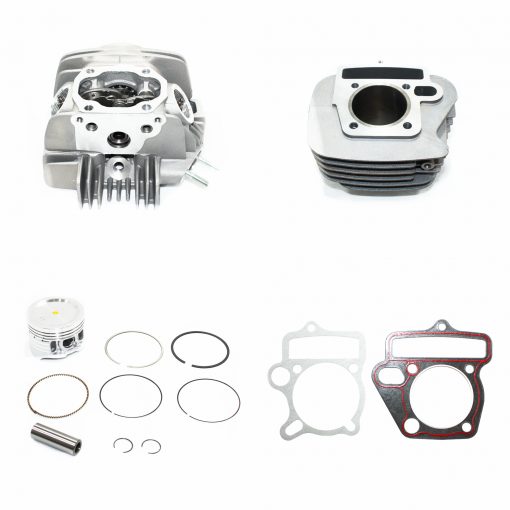

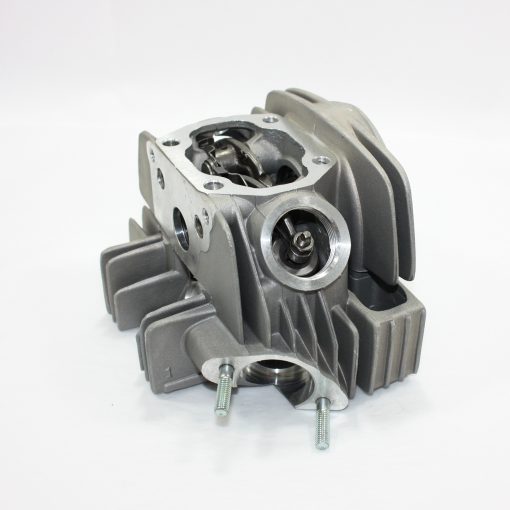

Engine Rebuild Kit Head Cylinder Barrel Piston Gasket YX 125cc PIT PRO DIRT BIKE
$ 89.61
- Brand New Engine Rebuild Kit Head Cylinder Barrel Piston Gasket YX 125cc PIT PRO DIRT BIKE DIAMETER OF VALVE COVER BOLTS (TWO ROUND HOLES) Approx. 28.96mm DIAMETER OF CAM SHAFT COVER (THE BIG ROUND HOLE) Approx. 72.05mm DISTANCE BETWEEN CARBY MANIFOLD MOUNTING HOLES (HOLE CENTRE TO HOLE CENTRE) Approx. 44.47mm DISTANCE BETWEEN TOP END COVER (RECTANGLE ONE; HOLE CENTRE TO HOLE CENTRE) Approx. 50.82mm / 50.27mm DIAMETER OF BORE Approx. 52.32mm DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS Approx. 49.99mm / 50.39mm / 47.70mm / 51.07mm HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE) Approx. 78.50mm HEIGHT OF THE SLEEVE Approx. 20mm Tag : PIT PRO, PIT Bike, Trail Bike, Dirt Bike, Motorcross Bike, MX Bike
