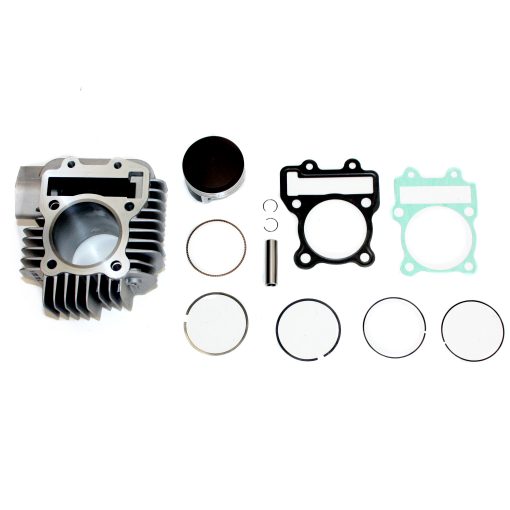

62mm Engine Bigbore Rebuild Kit YX 150 160cc TO 170cc PIT PRO DIRT BIKE
$62.26
$105.84

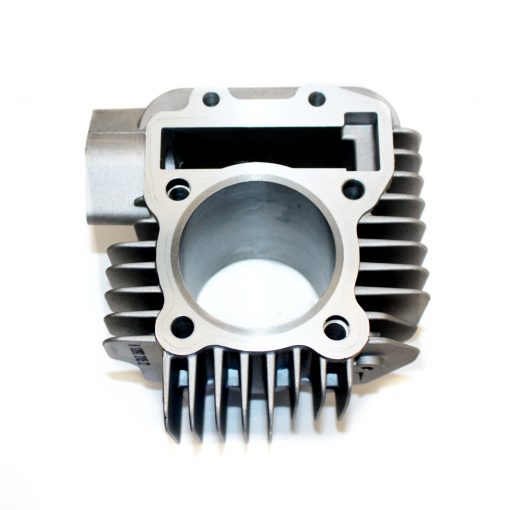

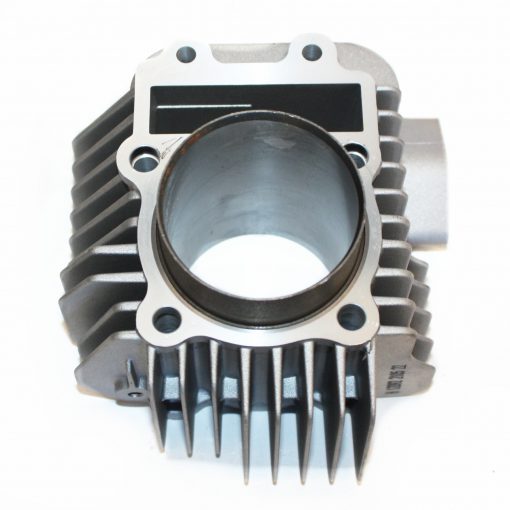

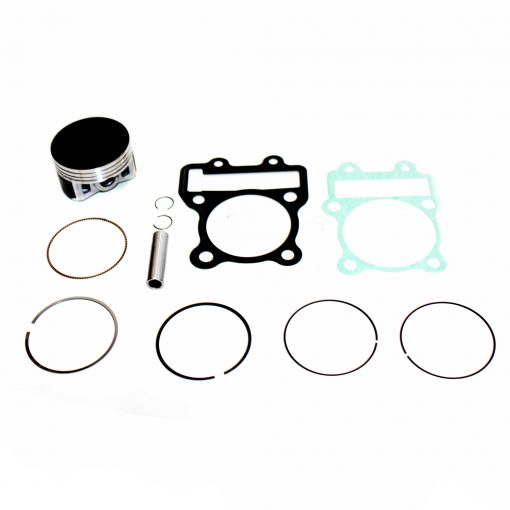

SKU: B131 Brand New 62mm Engine Bigbore Rebuild Kit YX 150cc TO 170cc PIT PRO DIRT BIKE DIAMETER OF BORE approx 62mm DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS approx 69.65mm / 57.99mm / 57.92mm / 57.55mm HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE) approx 73.85mm HEIGHT OF THE SLEEVE approx 21.65mm DIAMETER OF PISTON approx 62.02mm HEIGHT OF PISTON approx 38.07mm LENGTH OF PISTON PIN approx 45.78mm DIAMETER OF PISTON PIN approx 13.01mm Tag : PIT PRO, PIT Bike, Trail Bike, Dirt Bike, Motorcross Bike, MX Bike
