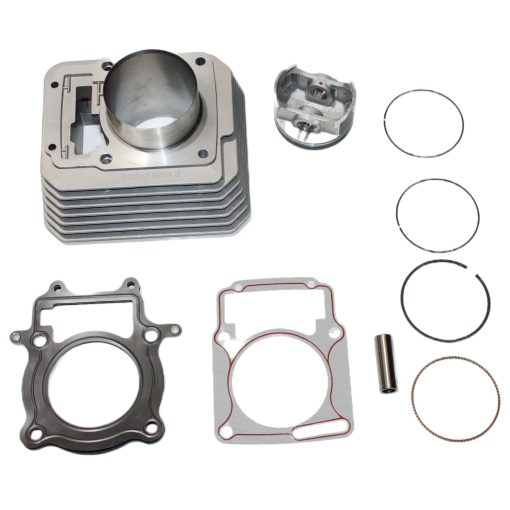

75mm Piston CB250-F Engine Rebuild Kit Barrel Gasket 250cc PIT PRO DIRT BIKE
$ 97.64

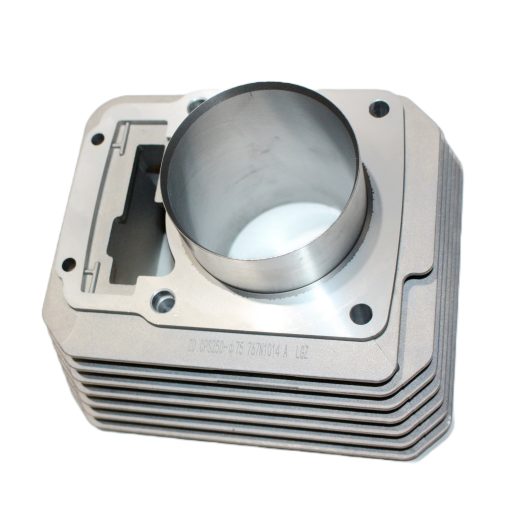

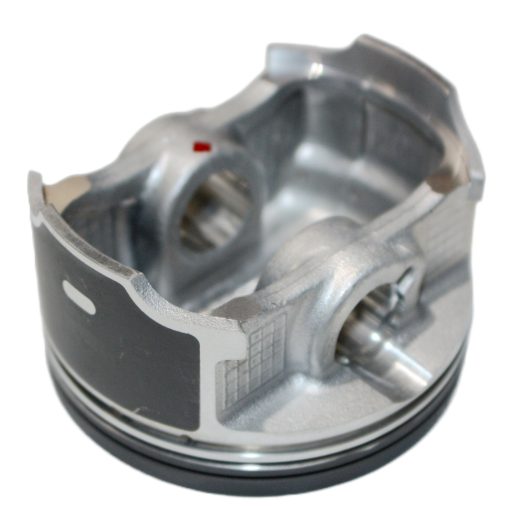

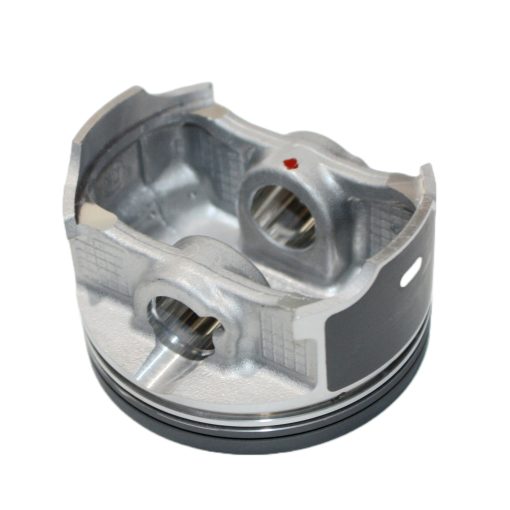

- Brand New 75mm Piston CB250-F Air Cooled Engine Rebuild Kit Barrel Head Gasket 250cc PIT PRO DIRT BIKE DIAMETER OF BORE Approx. 75mm DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE)TOP TWO BOLTS Approx. 63.05mm DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS Approx. 94.05mm / 81.90mm / 94.56mm / 82.86mm HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE) Approx. 72.64mm HEIGHT OF THE SLEEVE Approx. 34.96mm DIAMETER OF PISTON Approx. 74.96mm HEIGHT OF PISTON Approx. 43.60mm LENGTH OF GUDGEON PIN Approx. 47.90mm DIAMETER OF GUDGEON PIN Approx. 15.94mm Tag : PIT PRO, PIT Bike, Trail Bike, Dirt Bike, Motorcross Bike, MX Bike
