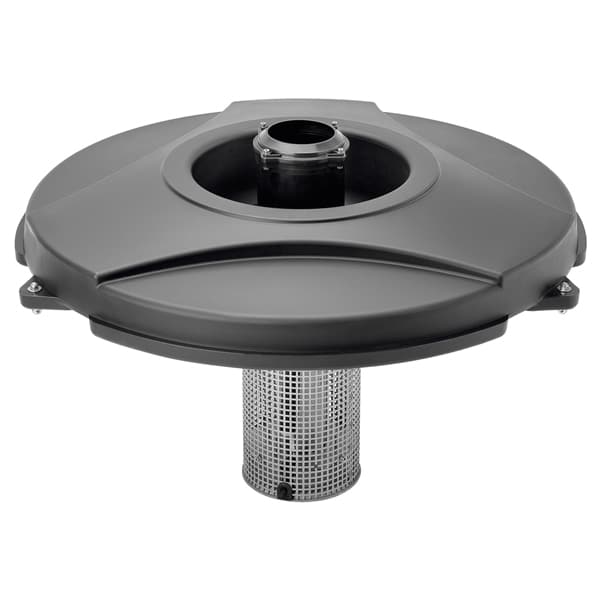

Description Oase AirFlo LM 1500 The Oase AirFlo LM 1500 Floating Lake Aerators are a simply stunning solution to ensuring high levels of oxygen within a lake or other large bodies of fresh water, They use a pump with an integrated axial propeller producing a massive 165,000 l/h flowrate to one of the 3 included nozzles. Using a bayonet connection the medium, large or extra large nozzles can be swapped in seconds to produce any of the three spectacular patterns. The Oase AirFlo LM Floating Lake Aerators which are part of the Lake Management range, are high performance floating Aerators with an integrated axial propeller pump, that will greatly enhance the Oxygenation of ponds and lakes with a surfaces of up to 15,000 m². The Oase AirFlo LM Floating Lake Aerators enrich the water with vital oxygen to the development of helpful bacteria, which can decompose contaminants such as ammonia/ammoniac and nitrite as well as preventing odours and silt through stagnation. Supplied as a 1500 (230 volts) with flowrates of 165,000 l/h this is a spectacular solution to oxygenating large bodies of fresh water. Features: Maximum oxygen supply for the body of water Easy installation and maintenance through bayonet technology Foamed float for extraordinary stability and minimum noise Pump basket of corrosion resistant stainless steel Included in the scope of delivery: Fastening set, as well as 3 »Trumpet« type nozzle attachments Lighting sets with stainless steel holder available as an accessory Floating aerator for oxygen supply via powerful water flow patterns for water surfaces of up to 5000 m2 Axial propeller technology for water flow rates of up to 165000 l/h The Oase AirFlo LM Floating Lake Aerators are quick and simple to install with a 3 step process 1. Place unit in the water 2. Using the bayonet connection, fit either the medium, large or extra large nozzle. 3. Connect to an existing power supply The electrical connection on these units are dependent on the model size, the 1500 (230v) unit is supplied with a Earthing pin plug and a power box Technical Data: Dimensions (Ø x H) – mm (calculated) 1090 × 700 Guarantee – years 2 Power cable length – m 50.00 Power – kW 1.5 Rated voltage – V 230 Frequency – Hz 50 Number of phases – unit 1 Nominal current – amps 10.2 Min. water depth – m 0.90 Winterproof No Max. flow rate – l/h 165000 Max. size of coarse debris filtered – mm 12 Flow rate Q max. l/h 155000 Power consumption P1 – kW 1.5 Recommended lake size min. – m² 100 Vis. effect for bodies of water up to – m² 5000 Suction depth, max. – m 4.00 European Article Number (EAN) 4010052501833 Net weight 35.50 Market OASE WT Rated voltage frequency (calculated) 230 V / 50 Hz
